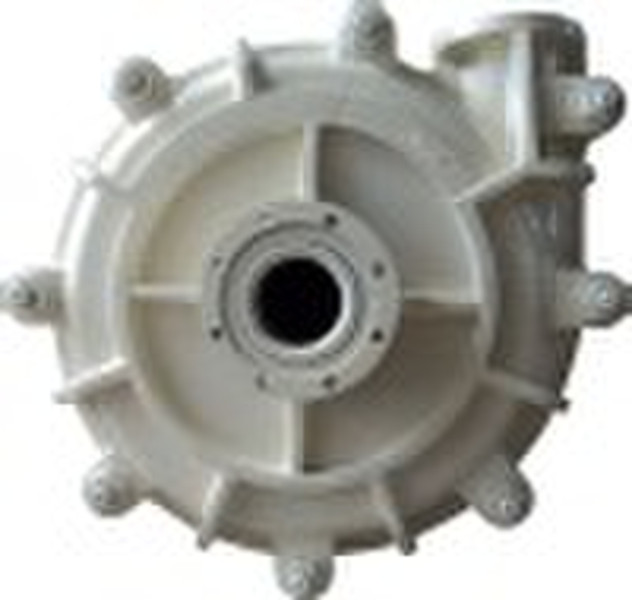

coal mining pump

high chrome coal mining anti-abrasive slurry pump Operating Parameters: Discharge size: to 18 inch (450mm) Capacity: to 5400m3/h (1500L/S) Head: 6 to 66meter Pressures: to 300psi (2020kpa) OEM Welcome Type Notation: SHB-150E SHB---Slurry pump 150----Discharge diameter E----Frame type 1 Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple. 2 Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing. 3 High efficiency and high head design are also available. The liners and impellers for high-head pumps are adoptable of hard metal only. 4 Centrifugal shaft seal, mechanical shaft seal and packing shaft seal are available. 5 Pump’s discharge angle can be revolved per 45°, so eight different angles to different using. 6 This type of slurry pumps is installed in multistage series also 7 Power source: three phase,50Hz or 60Hz 8 Medium temperature should not exceed 40 degrees Celsius. Solid particles maximum density by weight in medium: gray sediment for 45%, mineral sediment for 60%.
